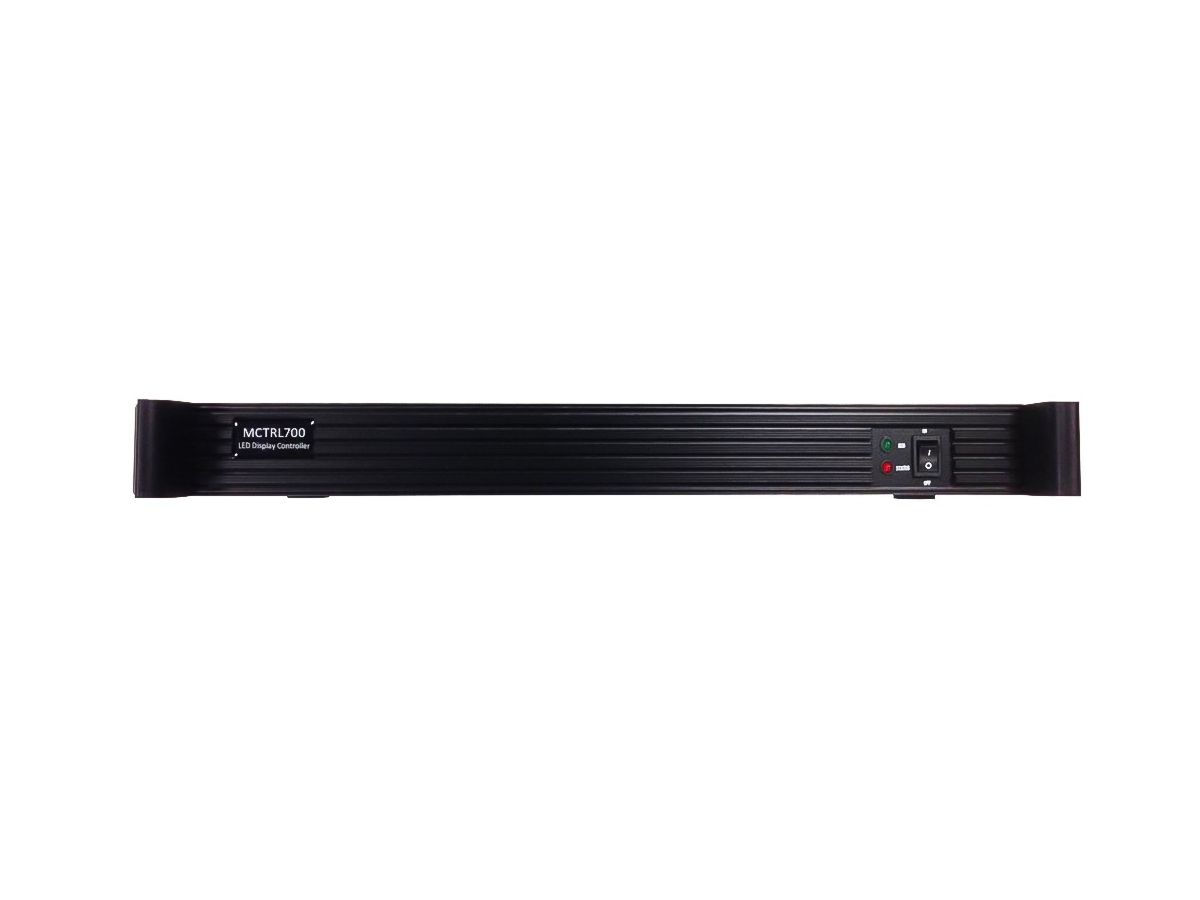

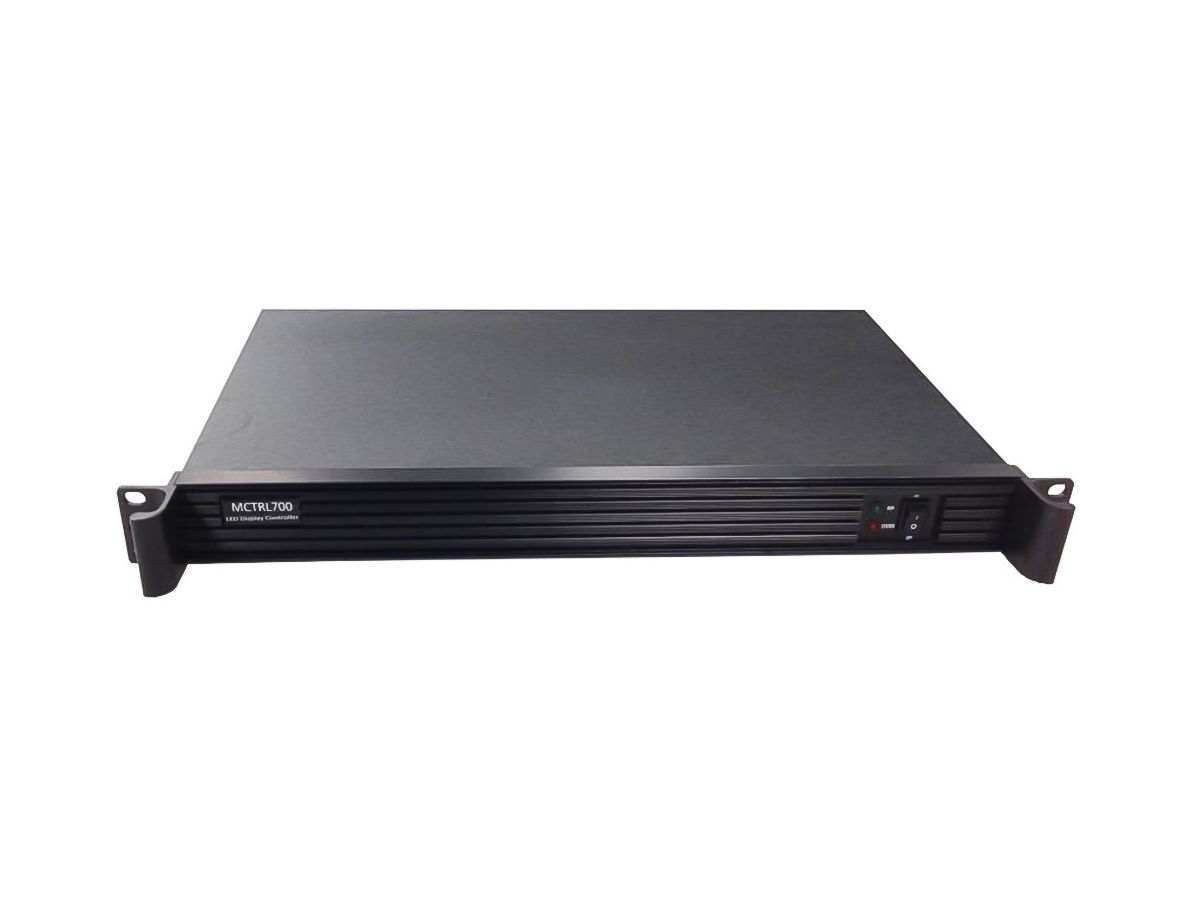

NOVASTAR MCTRL700

LED Display Controller

NOVASTAR MCTRL700

LED Display Controller

UVP
890.00

Bitte melden Sie sich an um den Warenkorb nutzen zu können und anschliessend Bestellungen abschliessen zu können.

Anmelden
Ab Woche 22 wieder lieferbar

Novastar MCTRL700 LED Screen Video LED Control Box. The specific features are as follows:

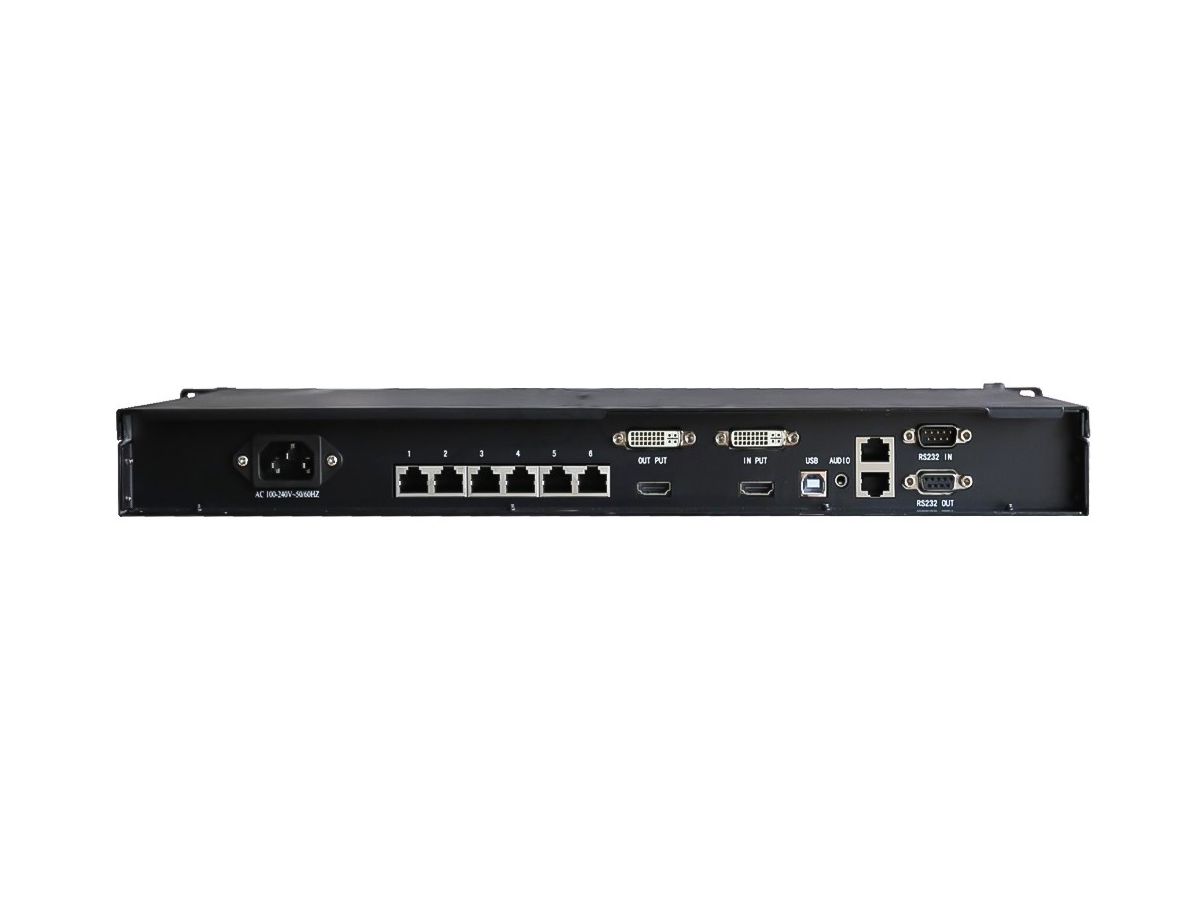

1) Support 1 channel of DVI video source input.
2) Support 1 HDMI video source input.
3) Support 1 channel of audio input.
4) Support 6-channel Gigabit Ethernet port output, each network port supports up to 650,000 pixels.
5) Support 1 channel DVI video source output for cascading or monitoring.
6) Support 1 HDMI video source output for cascading or monitoring.
7) Support 1 way port USB control interface.
8) Supports RS232 IN and RS232 OUT control interfaces for device cascading.
9) Support 2 channels of 100M network port, with square port USB interface, device cascading.
10) Maximum load resolution 2048×1152@60Hz or 1920×1200@60Hz.

Novastar MCTRL700 LED Screen Video LED Control Box Parameter:

Input indicator
Port Quantity Resolution specification
DVI IN 1 VESA
HDMI 1 EIA/CEA-861 standard, compliant with HDMI-1.3 standard, HDCP support

Machine specification
power consumption 16W
Operating temperature -20℃~60℃
Working humidity 0%RH~95%RH
Net Weight 2.9 Kg
USB Line 1.5 M
DVI Line 1.5 M



Art-Nr 5AB MCTRL700

Downloads

Datenblatt (626.3 KB)
